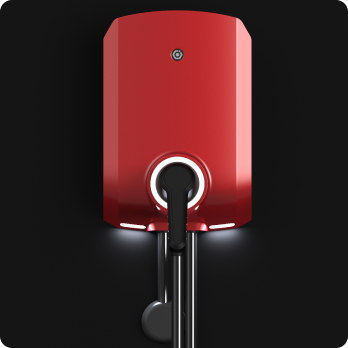

elektron W7
Compatible with all 4 Wheelers
Wall mounted
Auto cut-off
OCPP Compliant*
Type 2 connector
Earth leakage
Area light
Surge protection
*OCPP - Open charge point protocol, enables any EV charger to be onboarded on to our platform.
Price
₹53,280
Book now at ₹1,500 to get the charger at ₹39,960
Additional benefits of booking now,
- One year Extended Warranty.
- Order more than 2 to get additional discount of 5000 on final order value.
- Get free installation worth 1000 for e-W3 and 2000 for e-W7.
Technical specifications
| Power Input | Input rating Number of phase/wire | 230V AC, single phase, 32A maximum, 50Hz L, N and PE |
| Power Output | Output rating Charging interface | 230V AC, single phase, 32A maximum, 50Hz, 7.4kW maximum IEC 62196-2Type 2 tethered plug, 5m cable |
| Protection | Electrical Protection | Over current, under voltage, over voltage, Residual current, short circuit, surge protection, ground fault. |
| User Interface and controls | Status indicators Buttons / switches | RGB ( Status - Booked, idle, charging, fault) Emergency stop button |
| Communication | Network interface Charging protocol | 2G/3G/4G , WLAN OCPP 1.6J |
| Mechanical | Cooling Ingress protection Dimension (WxHxD) | Natural cooling IP55 380x260x140 mm |
| Regulation | Certificate / compliances | IS 17017 |
