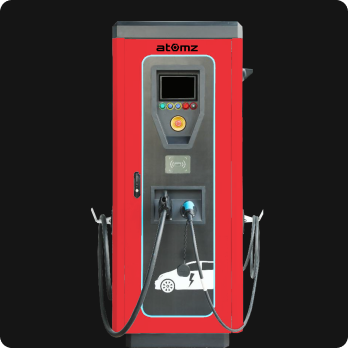

DC 50kW
Compatible 4 Wheelers, Buses
Ground mounted
Auto cut-off
OCPP Compliant*
CCS2 connector
State of Charge from vehicle
0 to 80% in 60 minutes
Surge protection
*OCPP - Open charge point protocol, enables any EV charger to be onboarded on to our platform.
Technical specifications
| Power Input | Input rating Number of phase/wire | 3 Phase, 415 Vac, (330 ~ 460 VAC), 50Hz L, N and PE |
| Power Output | Output rating Charging interface | 200-500V DC, 125A maximum, 50kW maximum CCS Type 2 / CHAdeMO |
| Protection | Electrical Protection | Over current, under voltage, over voltage, Residual current, short circuit, surge protection, ground fault. |
| User Interface and controls | Status indicators Buttons / switches | 7" TFT LCD with Touch Start/Stop, Emergency Stop (Mushroom Head Red Color) |
| Communication | Network interface Charging protocol | 2G/3G/4G , WLAN OCPP 1.6J |
| Mechanical | Cooling Ingress protection Dimension (WxHxD) | Natural cooling IP55 1900mm x 850mm x 875mm |
| Regulation | Certificate / compliances | UL(2202,2231), cUL |
