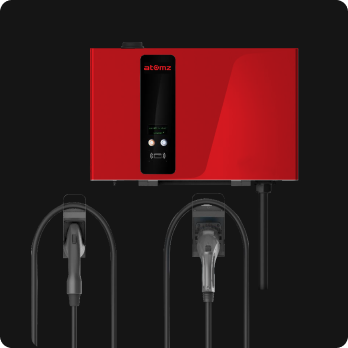

DC 25kW
Compatible with all 4 Wheelers
Ground mounted
Auto cut-off
OCPP Compliant*
CCS2 connector
State of Charge from vehicle
0 to 80% in 60 minutes
Surge protection
*OCPP - Open charge point protocol, enables any EV charger to be onboarded on to our platform.
Technical specifications
| Power Input | Input rating Number of phase/wire | 3 Phase, 415Vac (374 ~ 440Vac) L, N and PE |
| Power Output | Output rating Charging interface | 50-500V DC, 60A maximum, 25kW maximum CCS Type 2 |
| Protection | Electrical Protection | Over current, under voltage, over voltage, Residual current, short circuit, surge protection, ground fault. |
| User Interface and controls | Status indicators Buttons / switches | 2.7” OLED Screen Emergency stop button |
| Communication | Network interface Charging protocol | 2G/3G/4G , WLAN OCPP 1.6J |
| Mechanical | Cooling Ingress protection Dimension (WxHxD) | Natural cooling IP55 680mm x 430mm x 230mm |
| Regulation | Certificate / compliances | UL(2202,2231), cUL |
